The PSR (Precision Sniper Rifle) Atlas Bipod came about as the Atlas was selected for the USSOCOM Sniper Rifle system. The PSR was in response to the testing feedback that we got from the Military. These changes include a non-rotational legs, fore and aft pivot limiting bosses and a 40% stronger Inner leg.
此裝置是搭配美國雷明頓 Remington 武器公司的狙擊槍,供貨給美軍SOCOM PSR特種司令部狙擊槍合約,一併交貨給美軍。
透過ADM-170S結合座,可直接安裝在MIL-STD-1913戰術滑軌上。

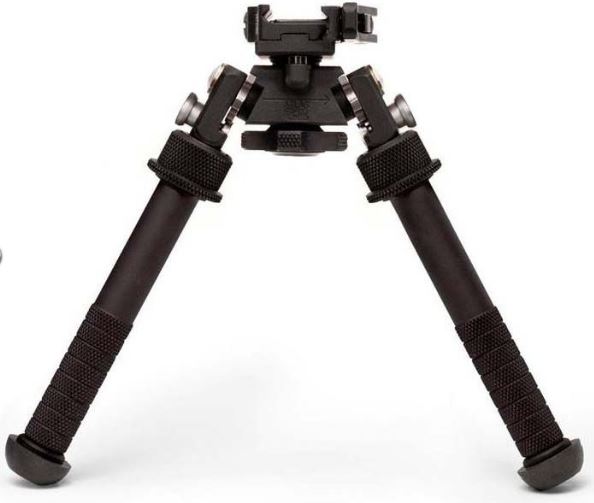

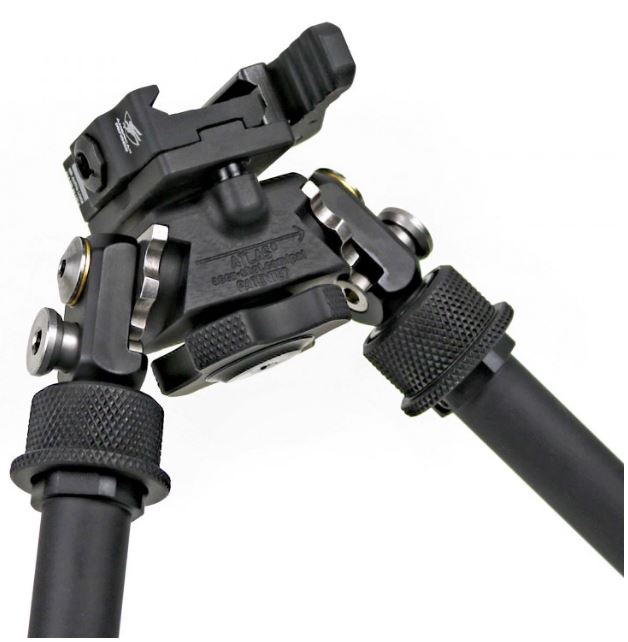

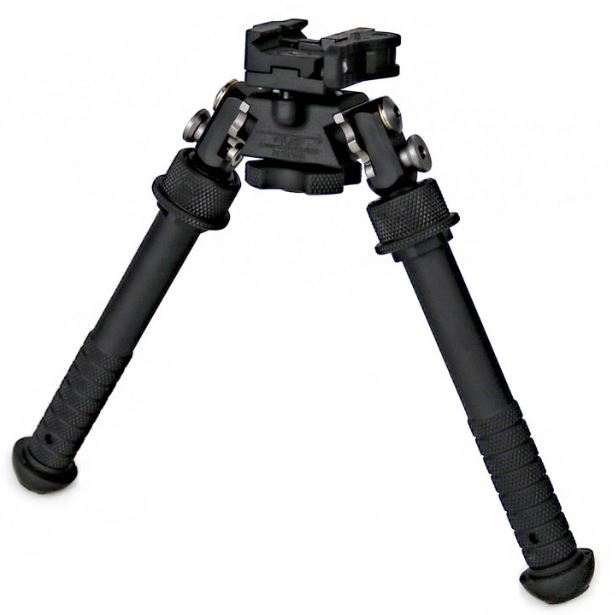

The BT46-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.
It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only.
Selected for the SOCOM PSR (Precision Sniper Rifle) Weapons System. NSN 1005-01-663-0038
材質:6061-T6鋁合金組成。內腳架為7075-T6鋁合金。
表面處理:軍規MIL-Sepc 第三級,硬塗層陽極氧化處理。不鏽鋼零件經過熱處理。
高度:5 – 9’’英吋
腳架位置:五段位置調整,0, 45, 90, 135 & 180度位置
重量:13.61盎司
展開寬度:8 – 11’’英吋
平行轉向(Pan):左右各15度,共30度pan
側面轉向(Cant):各15度,共30度cant
